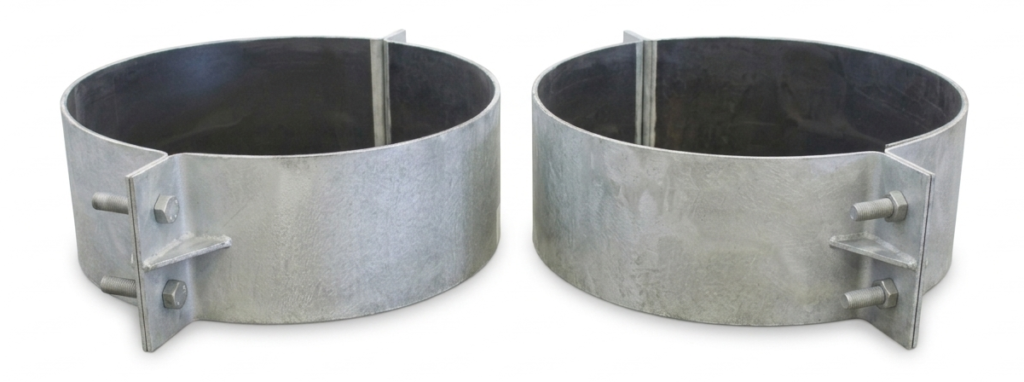

JCMARVEL ENGINEERING AND TRADING LLP offers an exceptionally wide range from 1/2″ to 144″ nominal diameter. This broad capability bridges two major market needs: small-bore precision plumbing/instrumentation and ultra-large-bore heavy civil/industrial infrastructure.
Core Function & Structural Engineering
Pipe clamps are built to suspend, secure, guide, or position piping systems while transferring weight and dynamic forces safely to structural frames. Unlike fixed pipe anchors that restrict all movement, JCMARVEL Pipe Clamps cover the full spectrum—from light-duty guide clamps allowing axial expansion to heavy-duty double-bolt clamps engineered for extreme suspension loads.
Engineering Features Across Size Ranges
- Small Bore & Instrumentation Range (1/2″ to 2″ NPS): Precision-formed 2-bolt and single-bolt loops, split-ring clamps, and tubing clamps. Designed for cleanroom lines, instrumentation, HVAC chilled water, and commercial plumbing lines.
- Standard Industrial & Process Range (2-1/2″ to 24″ NPS): Standard two-bolt clamps, heavy-duty three-bolt clamps (for insulated lines), and riser clamps. Engineered to comply with MSS SP-58 (Types 1, 3, 4, and 8) and ASME B31.1/B31.3 standards.
- Large Bore & Infrastructure Range (26″ to 72″ NPS): Heavy structural flat-bar and plate fabricated steel clamps. Built for high-pressure water mains, power plant cooling loops, gas transmission, and ducting systems.
- Ultra-Large / Mega-Infrastructure Range (76″ to 144″ NPS): Custom-fabricated, heavy plate clamps. Incorporate stiffened gussets, Teflon shims, sliding plate assemblies, and specialized load distribution pads for penstocks, heavy industrial flues, and massive civil headers.
Material & Finishing Options
- Metallic Options: Mild Steel, Carbon Steel (ASTM A36, A107), Stainless Steel (304/316/316L for marine and chemical resistance), and Alloy Steels for high-temperature services.
- Protective Coatings: Hot-Dip Galvanizing (HDG) per ASTM A123, Electro-Galvanized, Epoxy Coatings, and specialized Anti-Corrosive Marine Finishes.
- Lining & Isolation: Rubber-lined clamps for vibration dampening.
Value Propositions (Why Choose JCMARVEL)
- Unmatched Size Capabilities (1/2″ to 144″): Eliminates supplier fragmentation on EPC projects. JCMARVEL supplies both standard off-the-shelf HVAC/plumbing clamps and ultra-large civil infrastructure clamps under one roof.
- Compliance & Precision Engineering: Built to various international piping standards (MSS SP-58, ASME B31.3) to handle specified yield strength, thermal movement, and safety factors.
- Vibration Dampening & Noise Control: Option-rich range incorporating elastomeric liners and insulated blocks to protect against galvanic corrosion, pipe wear, and fluid vibration.
- Custom Fabrication Readiness: Specialized engineering for non-standard pipe outer diameters (OD), heavy wall thicknesses, insulated line saddles, and high-temperature alloy requirements.
