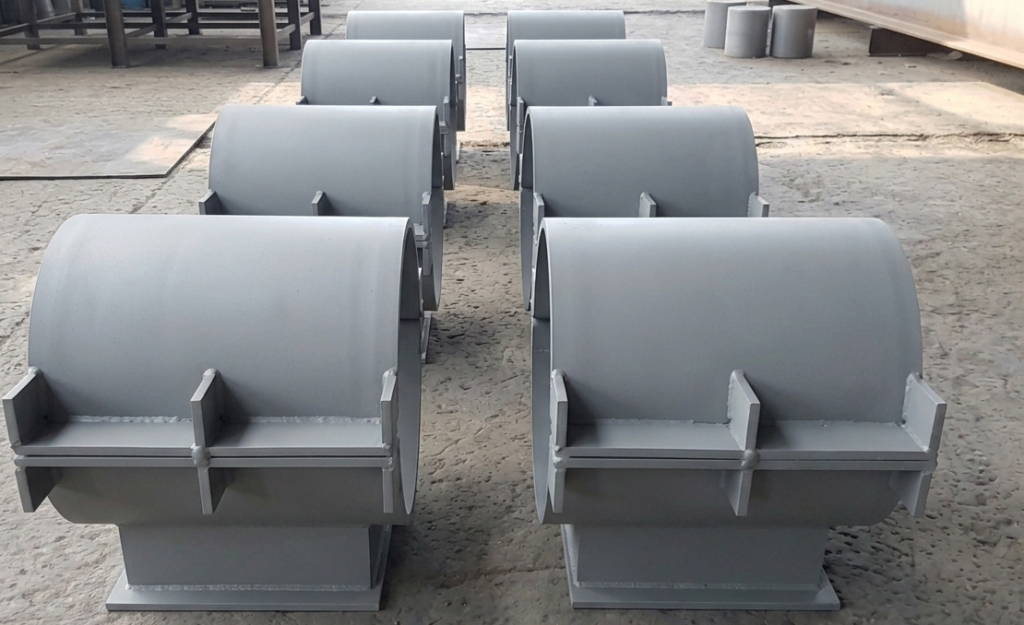

Technical & Marketing Specifications: Pipe Supports
Manufacturer: JCMARVEL ENGINEERING AND TRADING LLP (Size Range: 2″ to 144″ NPS)
Technical Specifications:
- Structural Integrity & Load Mitigation:
- Thermal Movement Management: Accommodates axial and lateral piping movement driven by thermal expansion and contraction, preventing rotational torque on structural steel.
- Stress Distribution: Broadens contact surfaces on lines up to 144″ to eliminate point-load concentration, wall thin-out, and shell ovalization.
- Standards Compliance: Fabricated to meet ASME B31.1 (Power Piping), ASME B31.3 (Process Piping), and MSS SP-58/SP-69 specifications.
- Material Grade Options:
- Mild Steel / Carbon Steel (MS – ASTM A36 / A516 Gr 70): Heavy-duty structural fabrications for general utilities, oil, gas, and water distribution. Finished with industrial primer (grey/yellow), epoxy, or Hot-Dip Galvanizing (HDG per ASTM A123).
- Stainless Steel (SS 304 / 316 / 316L): Superior corrosion resistance for offshore marine environments, chemical handling, and cryogenic processing lines.
- Fabrication & Size Categories (2″ to 144″):
- Standard Plant Piping (2″ to 24″): Precision-welded Pipe Support assemblies for process utility runs.
- Heavy Headers (26″ to 60″): Continuous fillet-welded, gusset-reinforced heavy structural shoes built for high-temperature header support.
- Large-Diameter Infrastructure (66″ to 144″): Multi-ribbed, structural-grade steel saddles and heavy shoes engineered for municipal water transmission mains, intake headers, and penstocks.
Marketing Positioning & Key Value Propositions
- Unmatched Scale: Single-source capability spanning small 2-inch facility lines to massive 144-inch mega-infrastructure mains.
- Continuous Heavy Structural Welds: Ribs and gussets feature continuous welding to endure high hydrodynamic and thermal stresses.
- Corrosion Control: Configurable with custom industrial primer, HDG, or stainless steel builds to suit subterranean, offshore, or high-humidity installations.
- Custom Field Fit: Manufactured to exact project specifications, shoe heights, and base plate mounting patterns.
