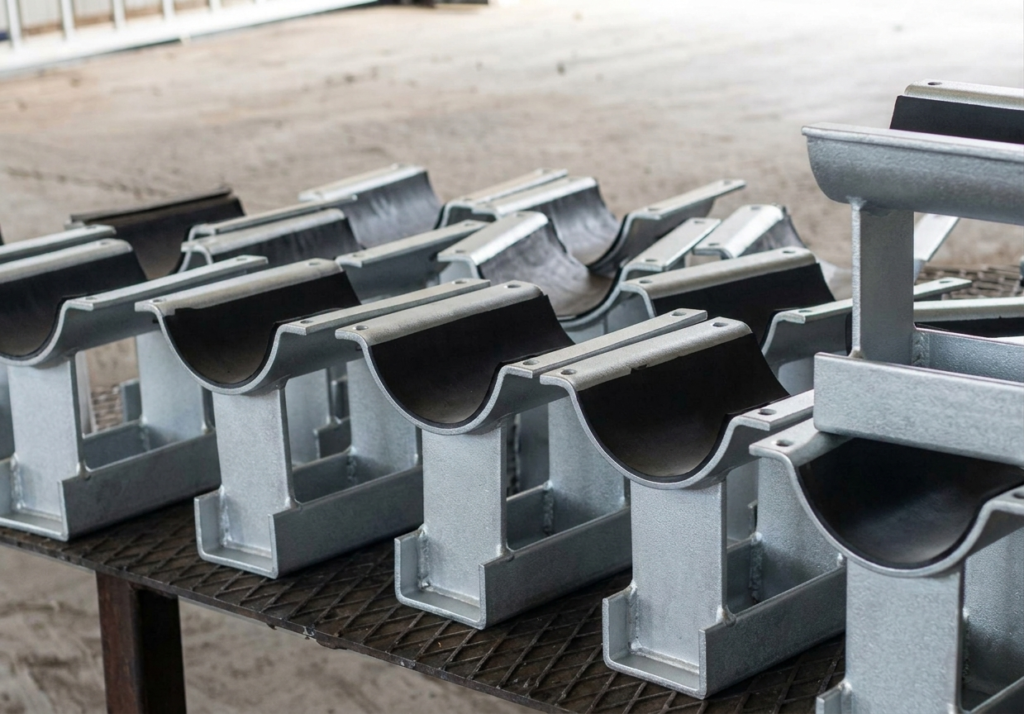

Rubber-lined pipe supports are engineered to isolate piping systems from vibration, acoustic transmission, galvanic corrosion, and mechanical wear. For heavy-duty industrial, power, and municipal installations, lining the metallic contact surface with high-performance elastomeric pads ensures structural integrity while safeguarding both insulated and uninsulated pipe walls.
1. Technical Framework & Specifications
- Operational Mechanics:
- Vibration & Shock Absorption: Dampens harmonic vibrations caused by pumps, compressors, fluid turbulence, and water hammer.
- Galvanic Isolation: Prevents direct metal-to-metal contact between carbon steel supports and alloy, stainless steel, or non-ferrous piping (copper, titanium, duplex), eliminating bi-metallic corrosion.
- Fretting & Wear Protection: Protects external pipe coatings, painted surfaces, and bare pipe walls against localized abrasion caused by thermal expansion sliding.
- Acoustic Attenuation: Reduces operational noise transmission through civil structures and building frameworks in process/utility plants and commercial HVAC setups.
- Size Range Capabilities (2″ to 144″ NPS):
- Standard Lines (2″ to 24″): Pressed clamps, U-bolts, and saddle supports fitted with pre-formed elastomeric liners for rapid site assembly.
- Large Industrial Lines (26″ to 60″): Heavy-plate contoured shoe supports and multi-bolt clamps featuring Cold vulcanized or mechanically fastened rubber pads.
- Mega-Infrastructure Lines (66″ to 144″): Reinforced heavy structural steel saddles custom-engineered for massive raw water intakes, penstocks, and utility mains, capable of supporting high localized loads without liner compression failure.
- Elastomer Options & Engineering Materials:
- EPDM (Ethylene Propylene Diene Monomer): Excellent UV, ozone, and weather resistance; ideal for outdoor utility lines, cold water, and steam condensate (Up to 120°C–150°C).
- Neoprene (Chloroprene): High mechanical strength, flame retardancy, and moderate oil/chemical resistance for general plant piping.
- Nitrile (NBR): Recommended for oil, fuel, and hydrocarbon fluid piping environments.
- Base Steel Coatings: Hot-Dip Galvanized (ASTM A123), Red/Grey Primer, Epoxy-Polyamide, or Marine Zinc Coating.
- Pipe Support Material: Mild Steel, Carbon Steel Alloys, Stainless Steels.
2. Key Value Propositions
- Zero Galvanic Degradation: Provides complete electrical isolation between support structures and process piping.
- Full-Scale Manufacturing Range: Custom and standard designs manufactured up to 144 inches under rigorous quality control standards.
- Extended Piping Lifespan: Protects pipe walls from fretting wear and stress concentration under high thermal movement.
- Custom Durometer Rating: Liners selected with precise Shore A hardness ratings to match specific system weight and vibration frequency profiles.
